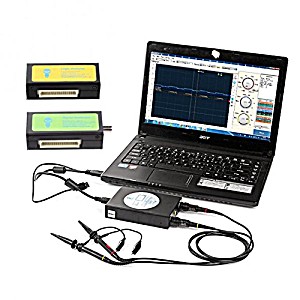

Sainsmart DDS140 Portable Handheld Pc-based Usb Digital Oscilloscope 40MHZ Bandwidth 200MS / s (DDS-140 + Signal Generator + Logic Analyzer)6955170862740
|
|
Sainsmart DDS140 Portable Handheld Pc-based Usb Digital Oscilloscope 40MHZ Bandwidth 200MS / s (DDS-140 + Signal Generator + Logic Analyzer)
|
|
|
Item Code: |
6 955170 862740 / 6955170862740 |
Manufacturer's Information: SainSmart DDS140 is a medium-performance oscilloscope which can be extended to achieve oscilloscope, signal generator and logic analyzer triple main functions by inserting different sub-modules. The highlighting advantages are the optional modular structure and high performance price ratio. Instead of spending high price on a traditional oscilloscope, signal generator or logic analyzer, this product will be a good choice. Features * Computer USB supply power directly * Support XP~Win8 * Waveform record, continuous playback and specified frame playback functions by frame-by-frame * Input channel arithmetic and FFT analysis * Anti-aliasing features of waveform drawing to reduce rendering errors further * Memory unction of user personalization settings * The rapid completion of the mouse to control the trigger function settings Logic Analyzer * Number of Channels: 8 channels * Input Level: 3.3V/5v TTL/CMOS Logic level compatible * Maximum sampling rate: 100MHZ * Memory Depth: 32K per channel * Output Bias: Software adjustable Signal Generator * Waveform Type: Square wave, sine wave, triangle wave, PWM * Amplitude: Software adjustable output range-4V ~ +4 V * Frequency: 1~20M HZ(sine wave) continuously adjustable, PWM output frequency limit 20K HZ * Bandwidth: 5M HZ(Sine wave) * Bias: Software adjustable * Duty: Software adjustable PWM output duty cycle, 10% of the ladder Note: Download updated software and manual: https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-010-731/DDS140.zip https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-010-731/CD/DDS140.rar |
|
|
|
|
